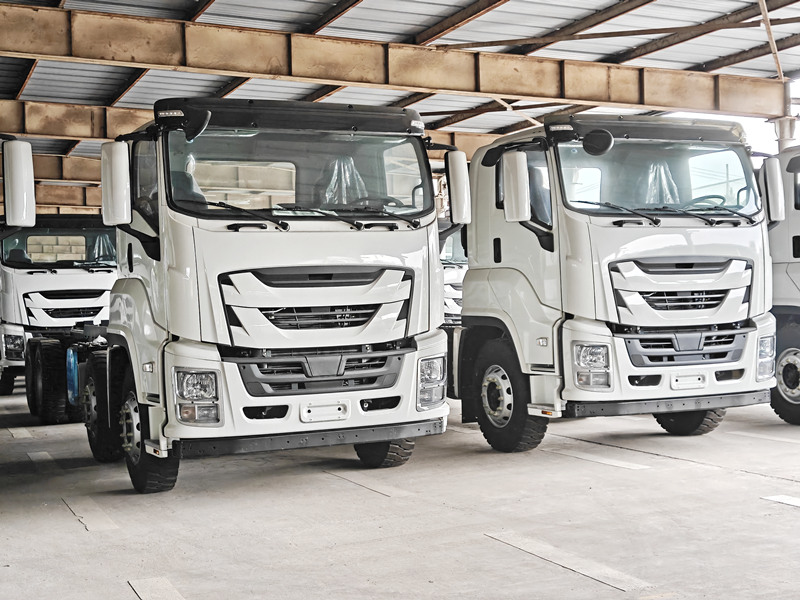

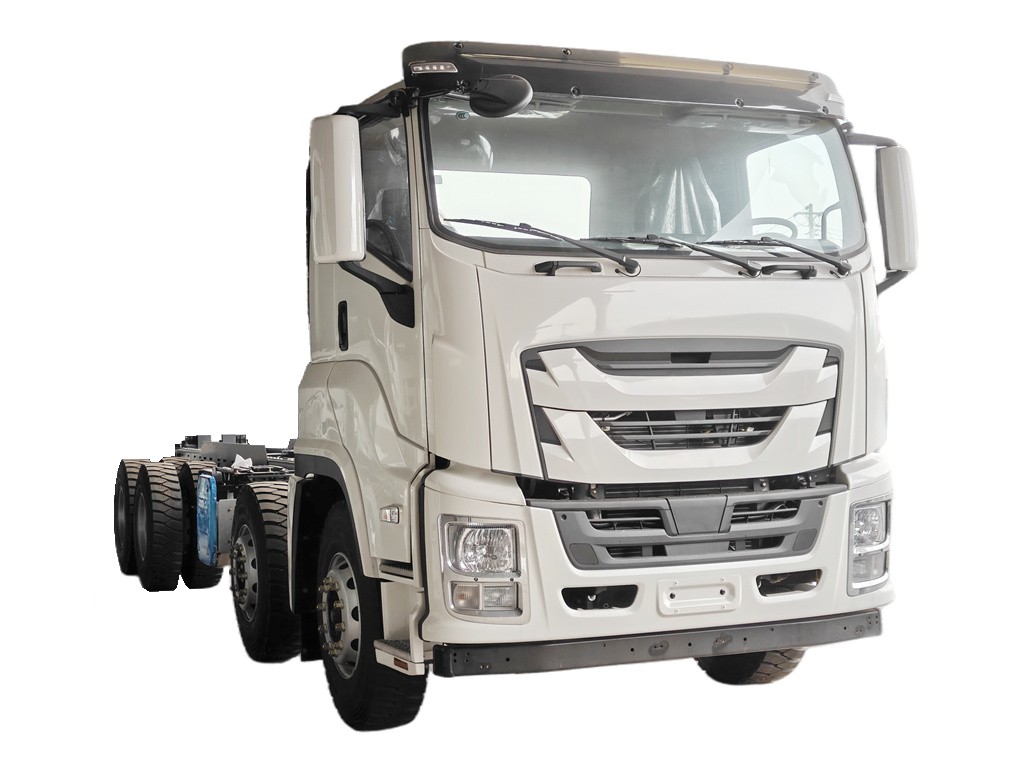

Heavy duty ISUZU GIGA 8x4 dropside cargo truck chassis can be customized for multiple special purpose trucks. Designed based on QL5440TZZW7VDHY model Isuzu Giga 8x4 truck chassis, which is a heavy duty truck chassis configuration launched by Isuzu for the high-end logistics market. Equipped with an ISUZU brand 6WG1-TCG62 model diesel engine, efficiently horse power can be 382KW / 520HP, powerful torque of 2250 Nm, ensuring strong traction , EURO 6 emission standard with capacity 15681ml. Matched working with ZF 12-speed automatic transmission 12TX2420TD, which is ZF fourth generation TraXon 12 speed automated manual transmission (AMT), renowned for its high transmission efficiency and can be up to 99.7% in direct drive, also convenient and safety operation, guarantee lower fuel consumption. ISUZU 12 wheeler cargo truck equipped with newly designed GIGA cabin, AC and air suspension seat, also multiple control buttons, which can efficiently reduce driver gatigue and improving uptime. The 8x4 designation indicates truck with four axles, front double axles with capacity 9tons, single tire for each, rear double axles with capacity 13tons, double tires for each, offering excellent load capacity and adaptability to complex road conditions, commonly used in heavy duty trucks or special purpose vehicles.

* ISUZU 8x4 6WG1 Lorry Cargo Truck price USD $66,000

ISUZU 12 wheels Cargo Truck with ZF auto gear*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

▶ Main Features:

★ ISUZU GIGA truck model QL5440TZZW7VDH, with gross vehicle weight 44000 kg

★ Japanese brand ISUZU 6WG1-TCG62 diesel engine , 100,000 Km no overhaul.

★ ZF automated transmission 12TX2420TD , convenient for driving

★ New generation ISUZU GIGA cabin, EURO design

★ Driving Model 8x4, matched with 12R22.5 tubeless tires

★ Color and Logos as customized

▶ ISUZU 10 wheeler Tractor Head Parameters :

▶ Isuzu GIGA 8x4 truck chassis advantages :

ISUZU GIGA heavy duty 8x4 model 12 wheeler cargo truck with multiple advantages, which can make 100% meet customer requirement. Below showing for detailed introduction.

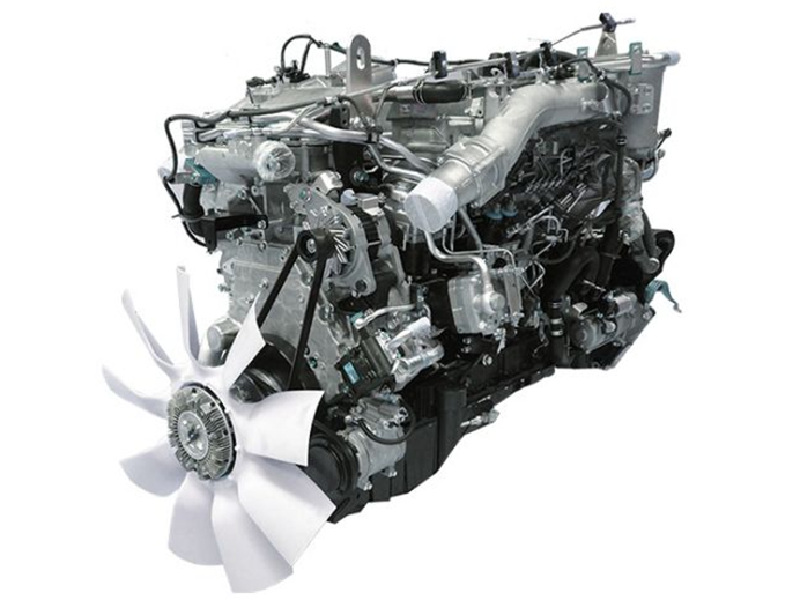

6WG1-TCG62 diesel engine

Janapese ISUZU diesel engine, 6WG1-TCG62 model, 6 cylinder in line, 382KW / 520HP, emission 15681cc, rated speed 1800rpm, maximum torque can be 2250Nm.

EURO 6 emission standard. Customized to remove DPF and ADBlue, also reprogram the ECU to make truck working as EURO 3/4.

•

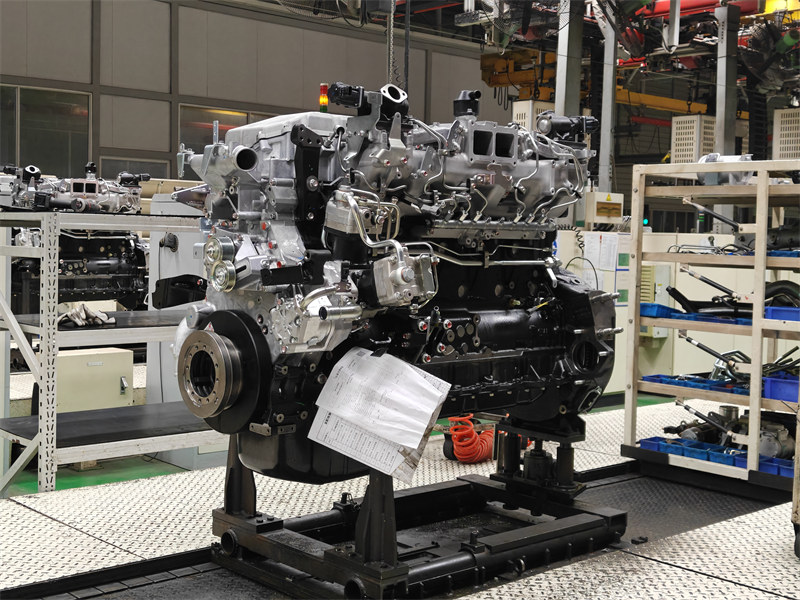

  6WG1 diesel engine factory
•

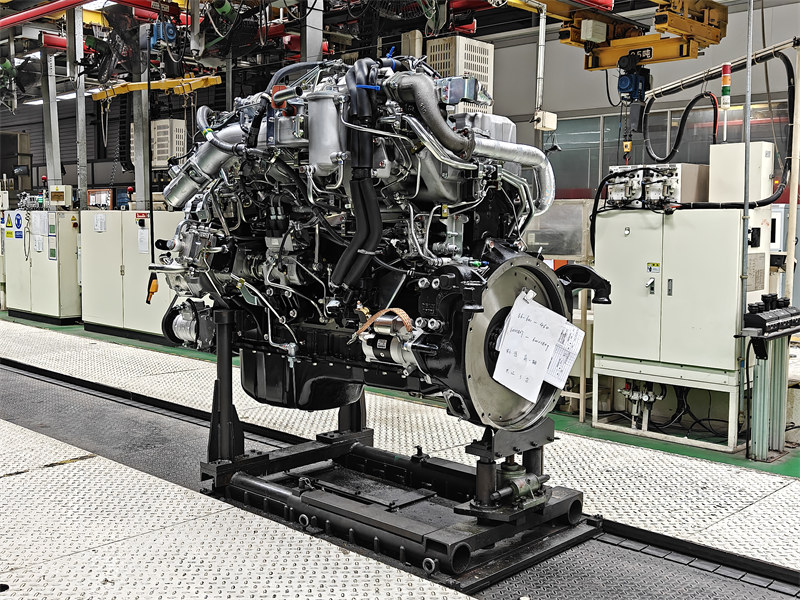

  ISUZU 520HP diesel engine
•

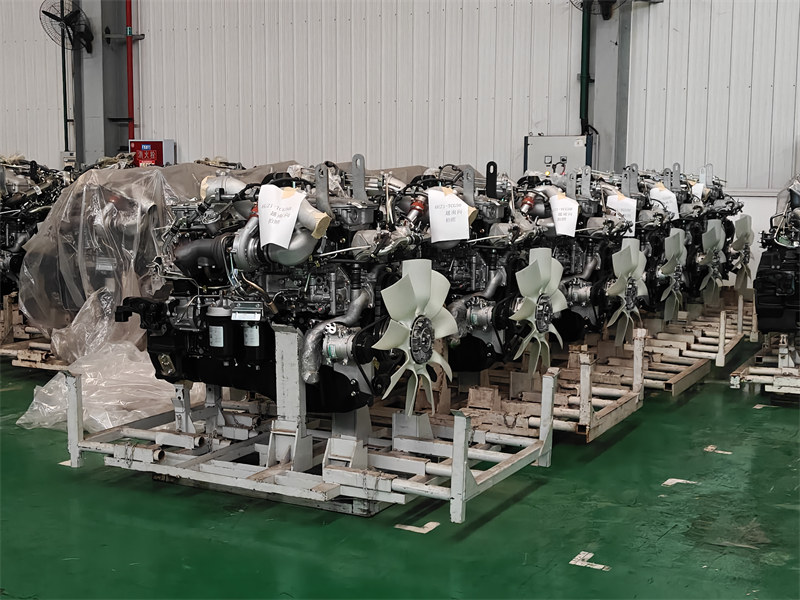

  ISUZU diesel engine in factory stock

ZF Automated Transmission

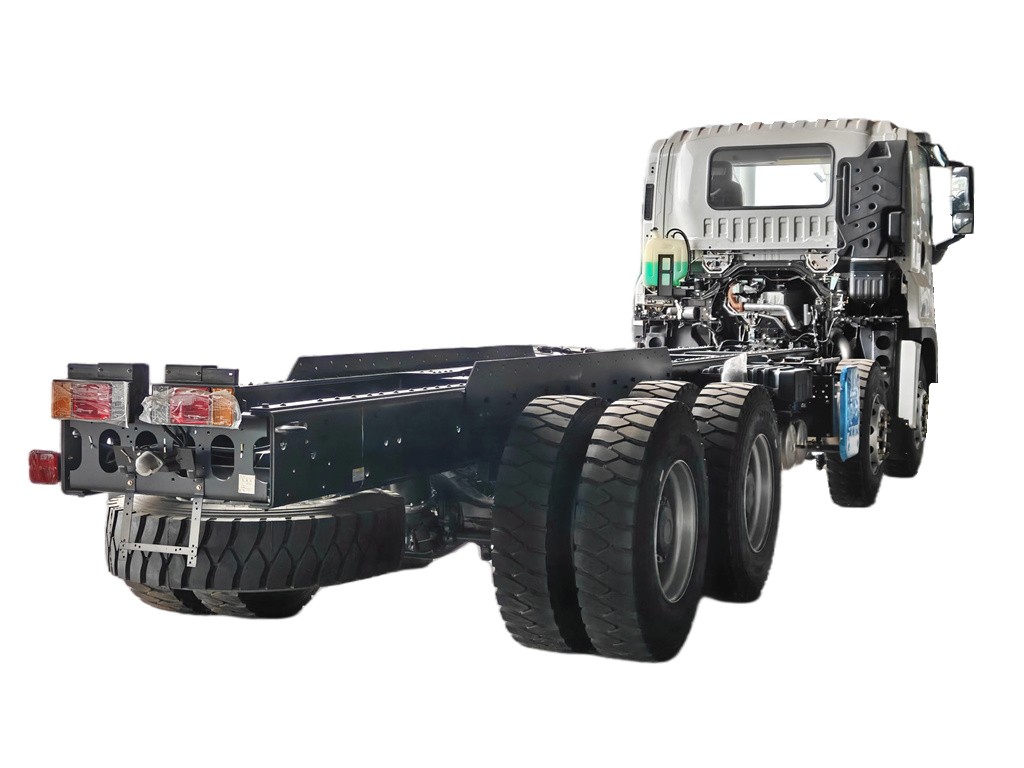

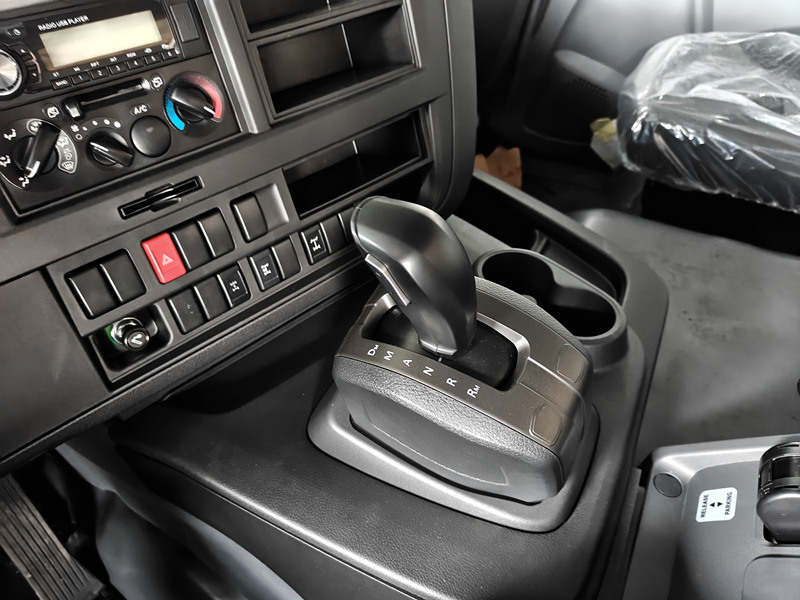

Isuzu GIGA 8x4 cargo truck equipped with Auto transmission.

ZF brand Automated Transmission, TRAXON model 12TX2420TD gearbox, with efficiently information as below:

Parts List Number 1358.001.134

Serial Number 80336409

Total Ratio 1-16.688

Speedo Ratio IMP7U 8.00

Oil Capacity 13.5L

ISUZU lorry cargo truck with GIGA cabin

Newly generation GIGA VC66 cabin, round shape steering wheel with multiple button for convenient operaiton. Dashboard matched with speed dial and rotation dial, also matched with multiple buttons for safety driving guarantee.

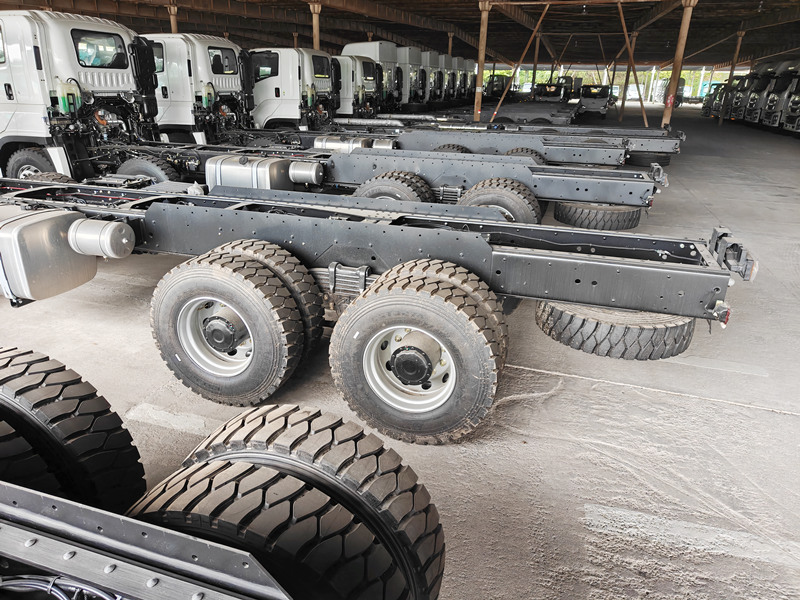

Stronger frame and axle assembly

Isuzu heavy type cargo truck is produced based on 8x4 model, double level truck frame for strong capacity, also matched with side plate for stronger working. Moreover, rear double axle with capacity 13+13tons.

•

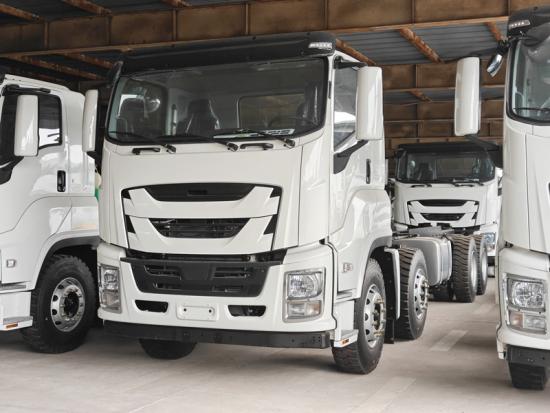

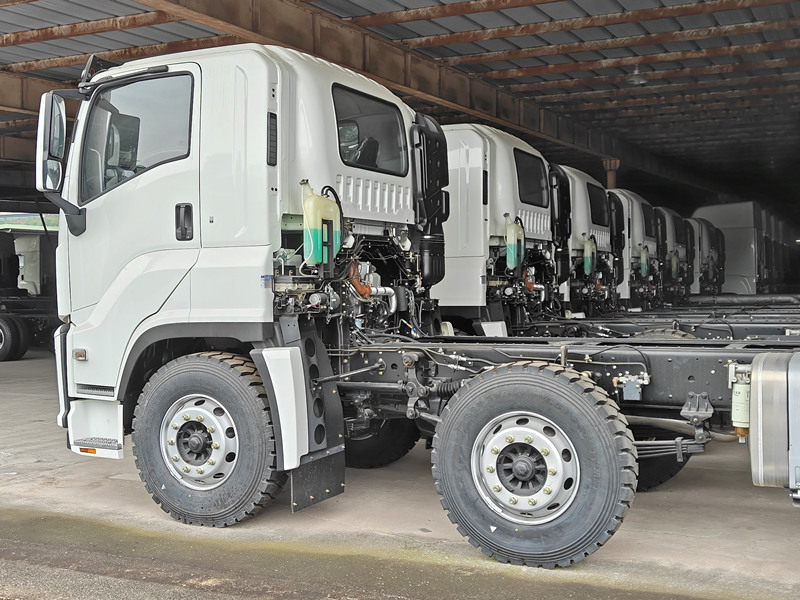

  ISUZU GIGA VC66 truck cabin
•

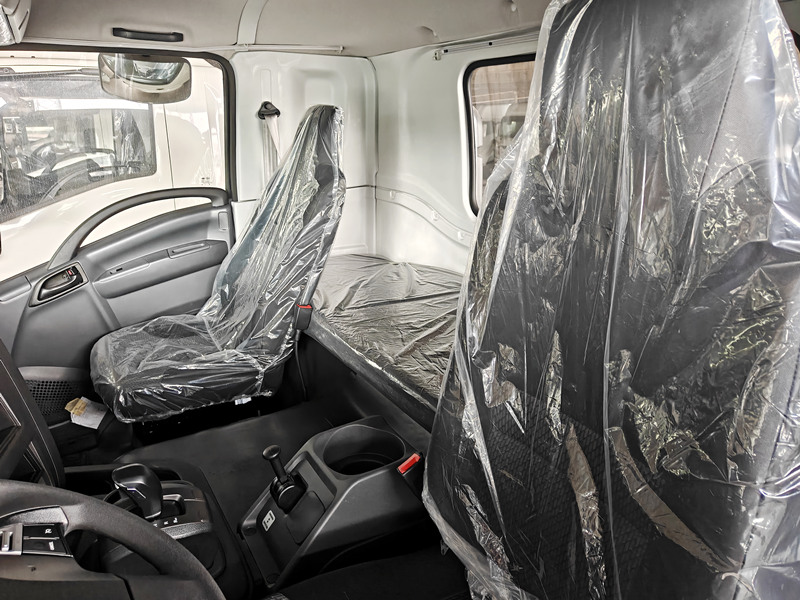

  GIGA cabin with rear sleeper
•

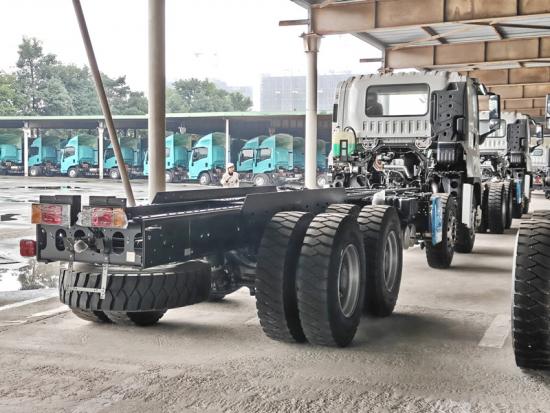

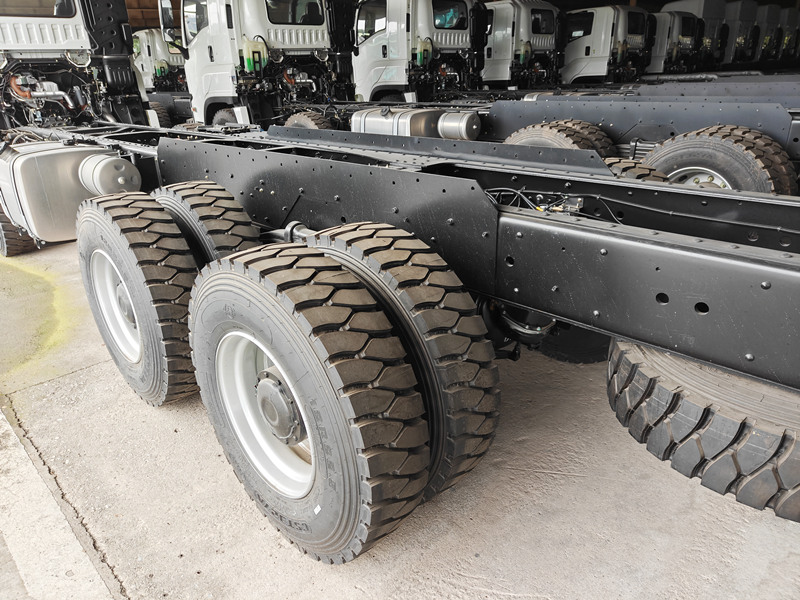

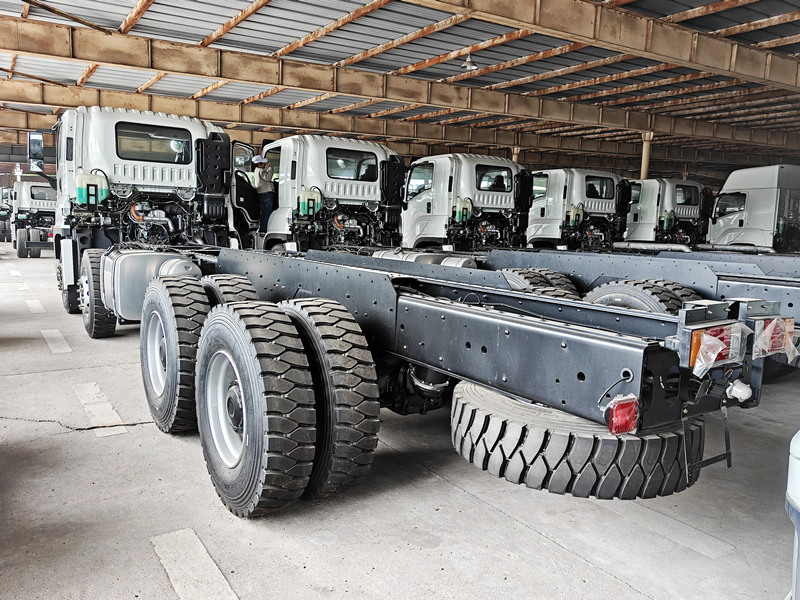

  Isuzu truck frame with rear double axles

•

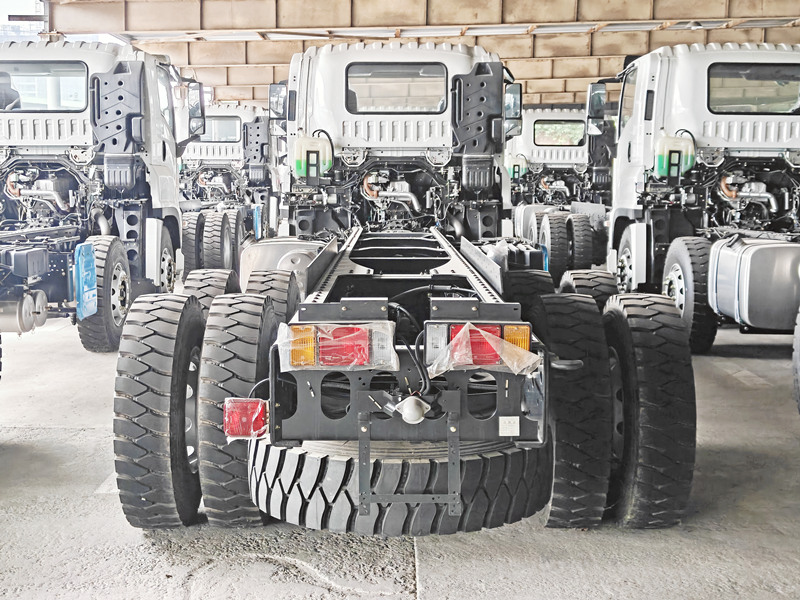

  Stronger frame with double level frame
•

  ZF automated transmission 12TX2420TD
•

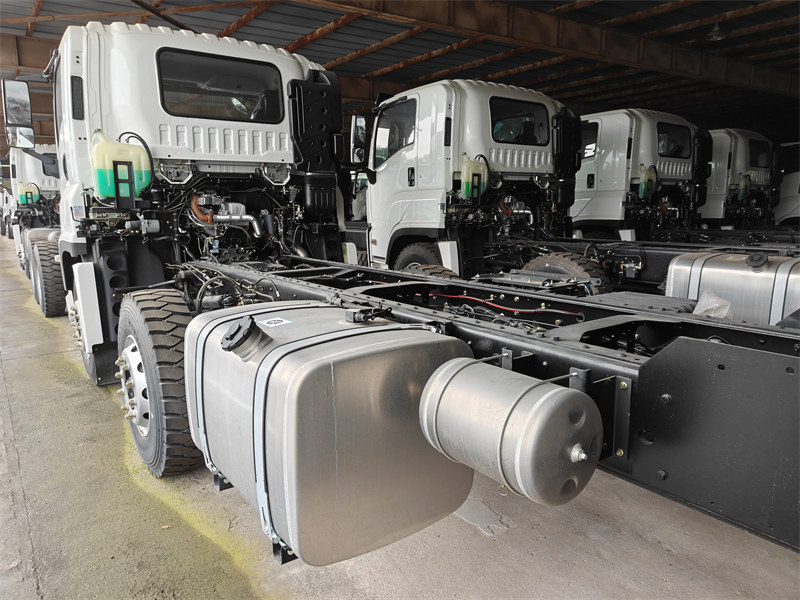

  400L aluminum fuel Tanker

▶ Customized ISUZU 8x4 Special Purpose Trucks :

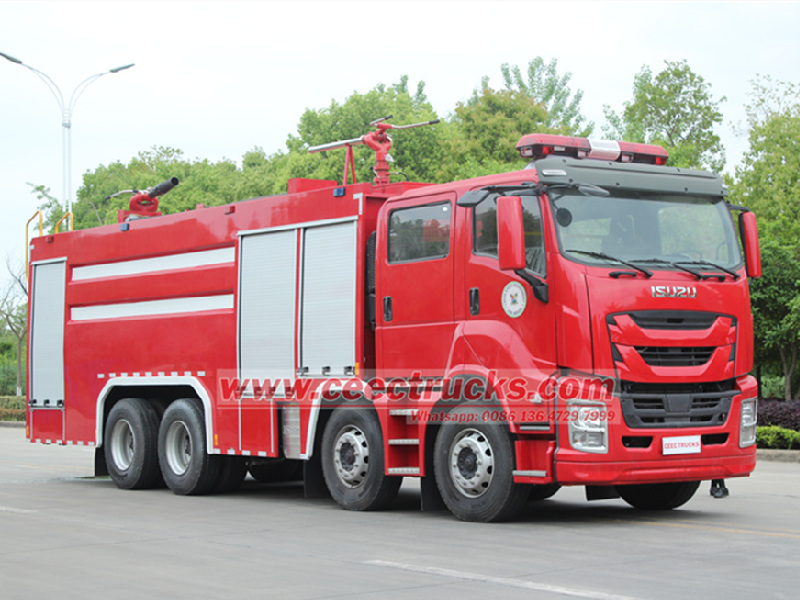

Isuzu GIGA 8x4 fire fighting truck

Customized as ISUZU GIGA VC66 fire fighting trucks, equipped with water, foam and dry powder agent, as Isuzu GIGA water fire truck, Isuzu GIGA foam fire truck, Isuzu GIGA dry powder fire engine. Also can be customized as ISUZU 520HP equipment rescue fire truck.

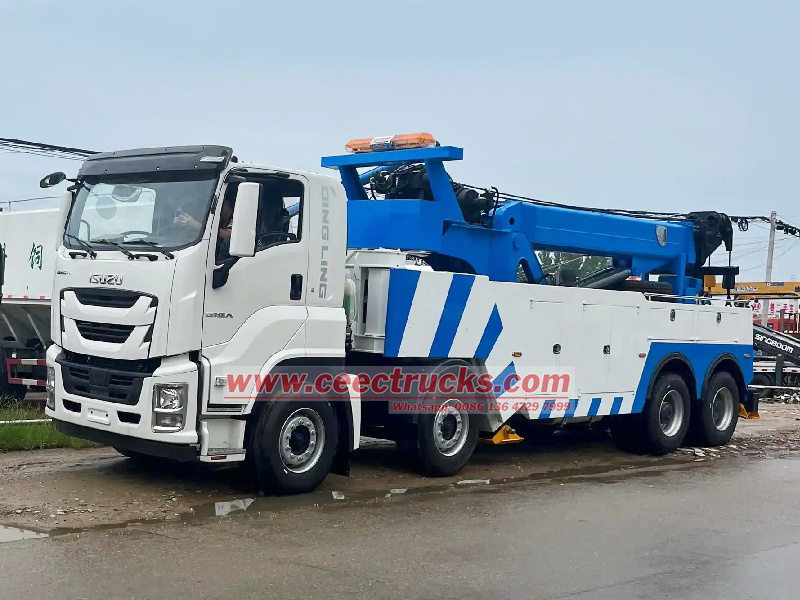

ISUZU GIGA 12 wheeler Road Recovery Truck

Designed and manufacturered by CEEC TRUCKS, customized as rotation ISUZU rescue trucks, efficiently loading capacity can be 20tons, 25tons, 30tons, 35tons, 40tons, 45tons and 50tons.

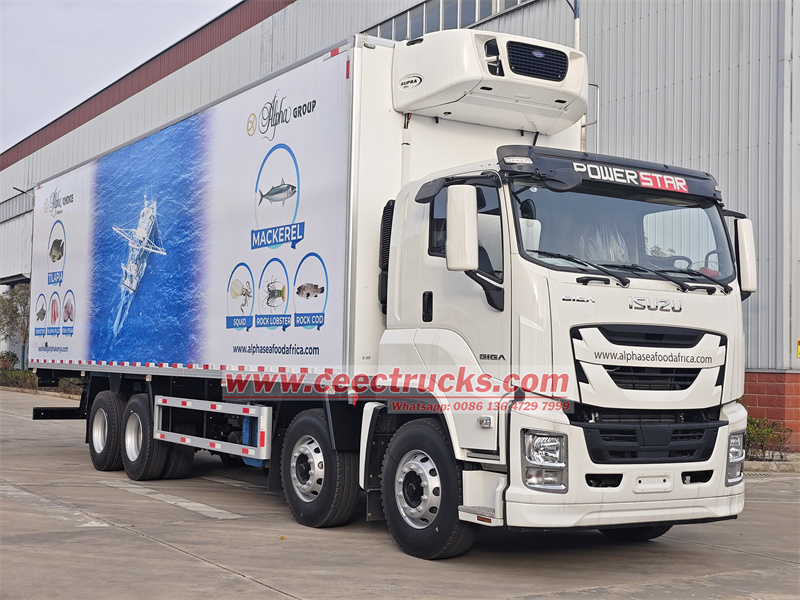

Isuzu GIGA 8x4 refrigerated truck

100% customized ISUZU GIGA VC66 freezer truck can have the refrigerated body kit size optional from 6500mm to 12000mm, efficiently capacity can be range from 40m³ to 66 m³. Working temperature can be -25℃

Optional to be equipped with multiple brand refrigetated unit: CARRIER, THERMO KING, KAIXUE, etc.

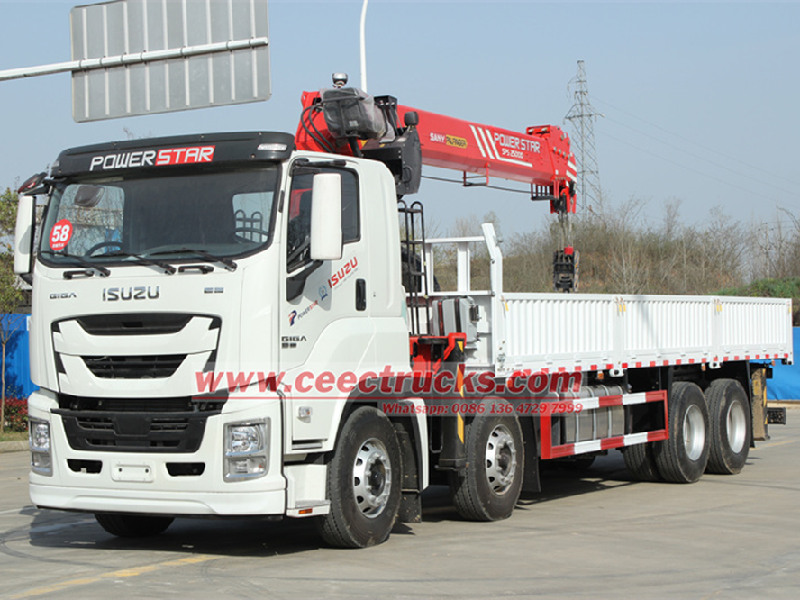

ISUZU GIGA VC66 Boom Crane Truck

ISUZU truck crane can be customized with multiple capacity, optional with telescopic boom crane or knuckle boom crane. Crane capacity optional from 5tons to 30tons.

Crane brand as Palfinger, XCMG, UNIC, HIAB, CEEC TRUCKS, etc

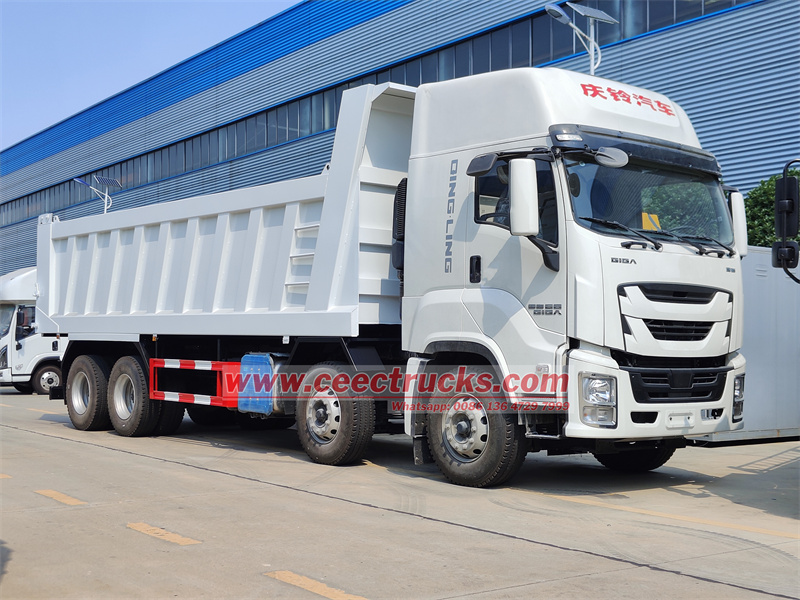

Isuzu 40tons dump tipper truck

Super heavy duty ISUZU GIGA 8x4 tipper truck can have the dump body size 7500x2300x1500mm, thickness for side 8mm and floor 10mm, front heavy lifting type. Tipper body can be square type, U shape, etc.

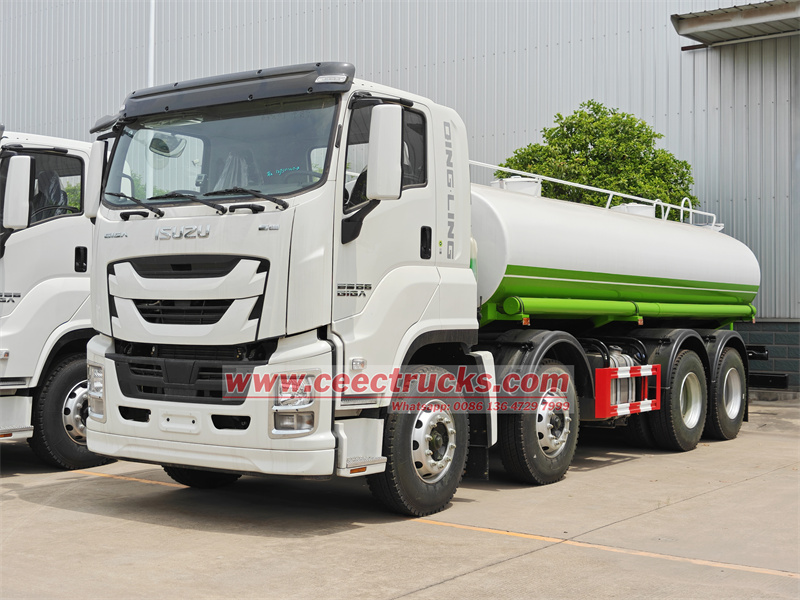

ISUZU 30000 Liters Water Tanker Truck

Isuzu heavy type water bowser truck and Isuzu GIGA fuel tanker trucks can have efficiently capacity 20000Liters to 40000Liters, equiped with pump for pump in and pump out function.

Tanker body material: Carbon steel, Aluminum alloy material, Stainless steel #304, Food grade stainless steel, SS316 material.

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5. promptly delivery. any order is welcome.

CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
